ERIC POWER AMP








Named after a great Swedish choir conductor, ERIC is the no-compromise statement power amplifier by Lars Engström. Created to drive even the toughest loads, it's a fully balanced and transformer-coupled, all the way from input to output. ERIC uses separate power supplies for input and output stages and DC filaments. Weighing in at 65kg per monoblock, it is an industry heavyweight in both size and sound.







ERIC is a fully balanced design with transformer coupling. No capacitors in the signal path except cathode decoupling.

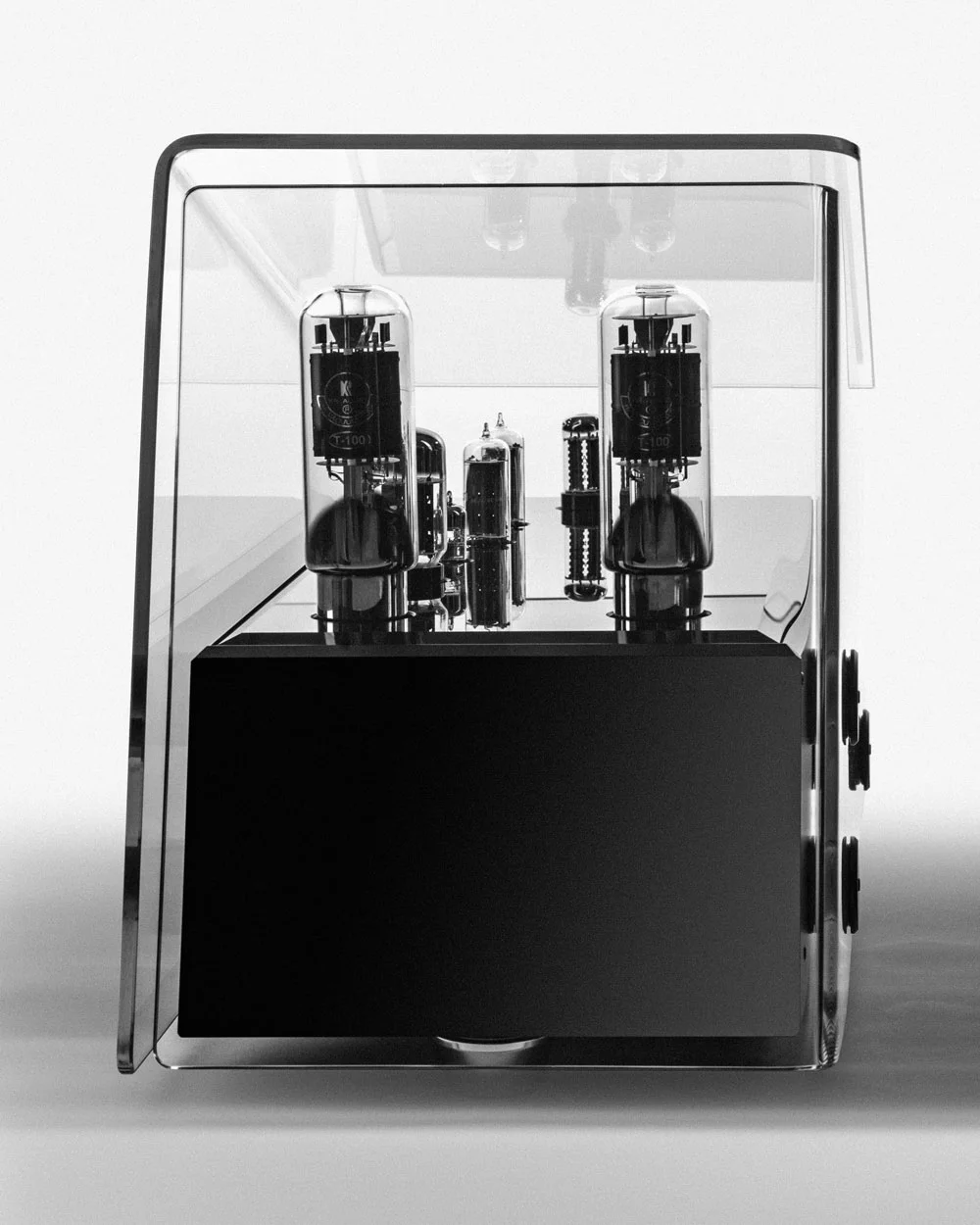

The power tubes are T-100 from KR. These are a modern version of 845 with oxide cathode instead of tungsten cathode. Driver tubes are 6L6GC in triode connection. Gain tubes are EC8010 a frame grid tube with high gain and low inner resistance.











TECHNICAL SPECIFICATIONS


Power output at 1% THD+N, 1kHz:

70W

Amplification:

27dB

Sensitivity:

1V for full output power

Input impedance:

40kohm

Output impedance:

4 ohm or 8 ohm
selectable on order.

Tubes:

2 x T100, 2 x 6L6GC, 2 xEC8010,
1 x GZ34, 4 x 6CJ3

Frequency response +0dB -1dB:

10Hz – 30 kHz

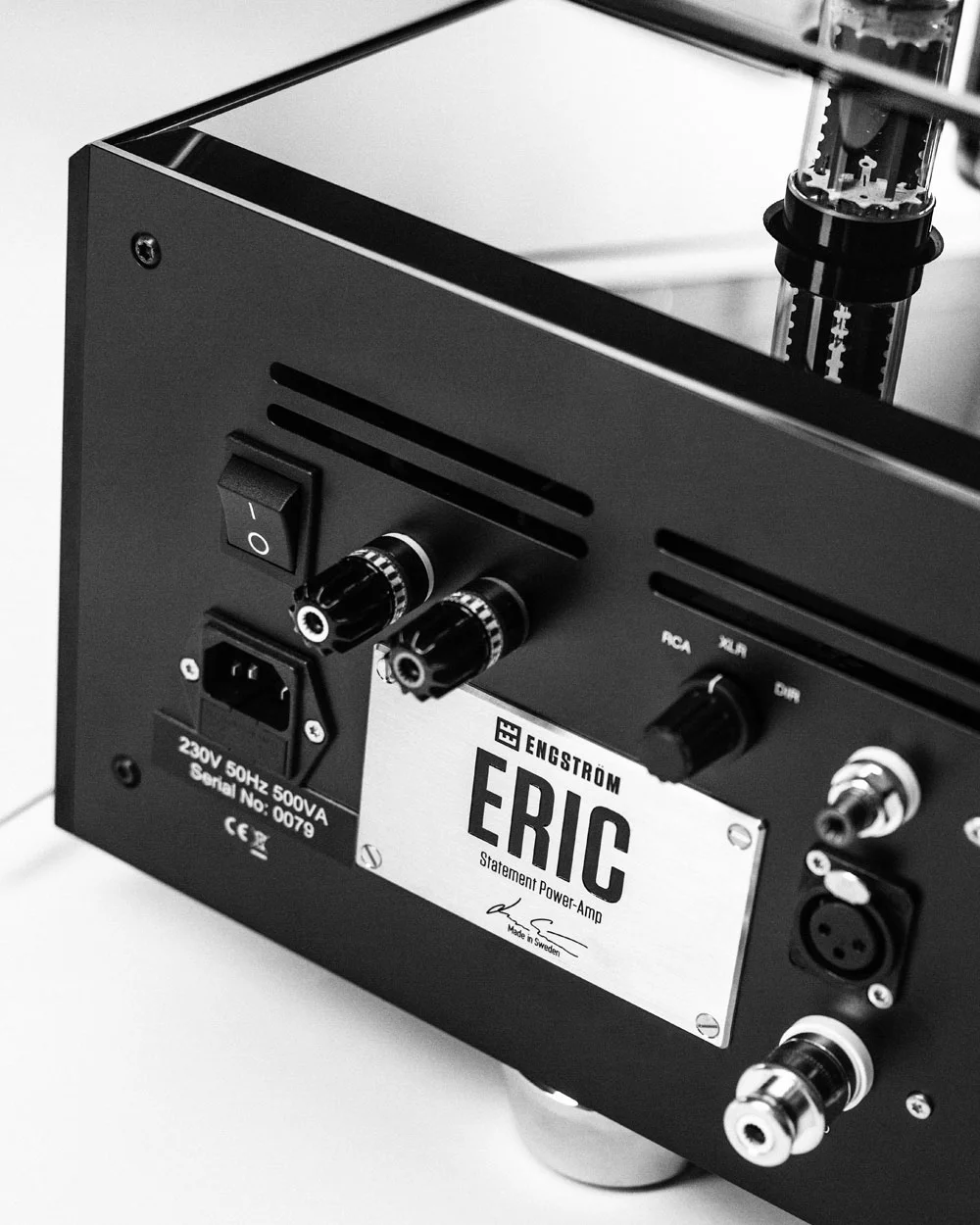

Mains power:

115V / 230V selectable,
50Hz – 60Hz, 500VA

THD (BW 70kHz) 100 Hz to 10 kHz:

50W less than 0,2%

Hum and noise:

90dB below full output voltage

Weight per monoblock:

65kg

Dimensions (W x H x D):

two units both equalling
750 x 360 x 480mm each
