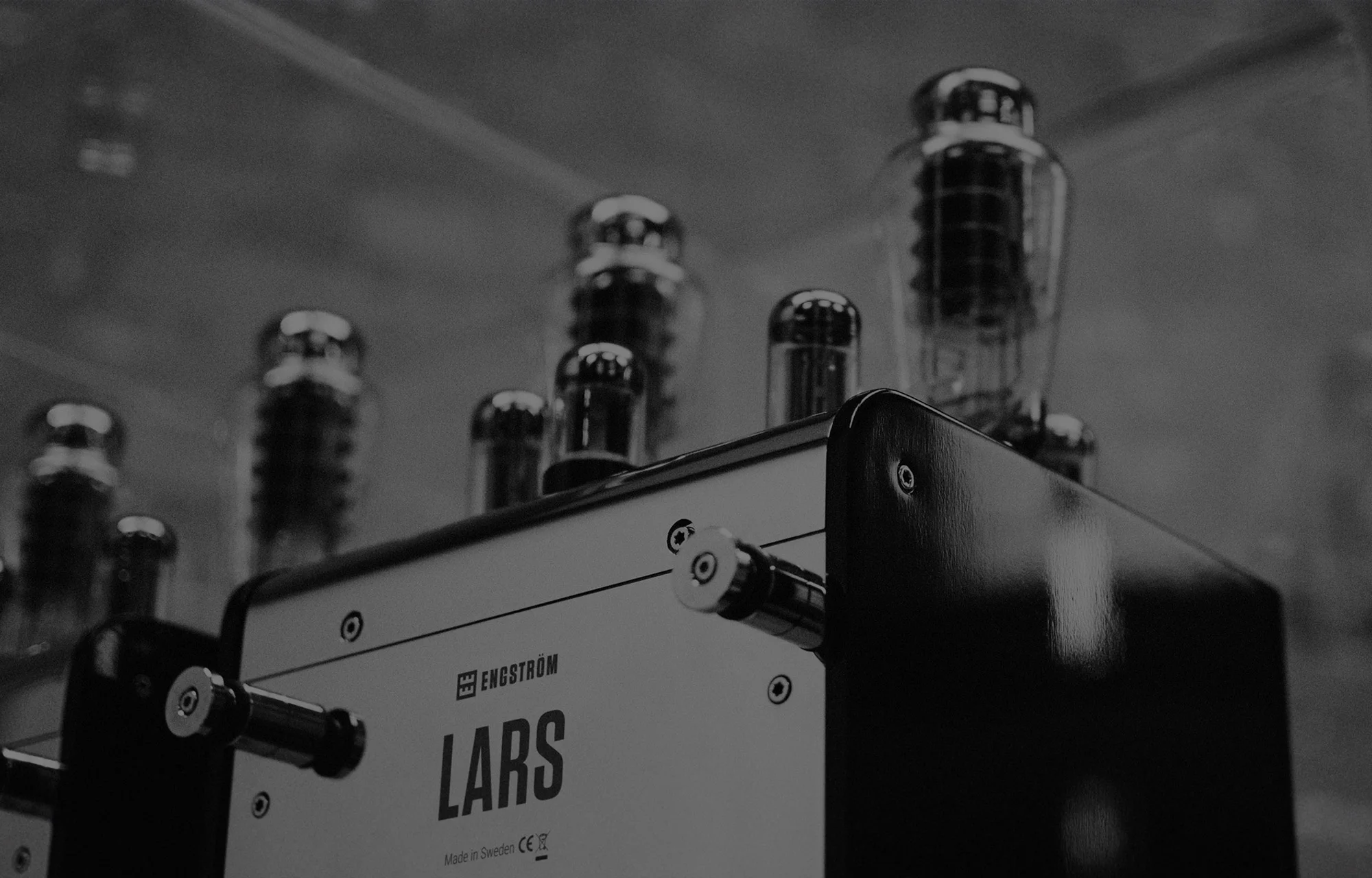

LARS POWER AMP








Named after our company’s co-founder Lars Engström, LARS is our original and critically acclaimed power amplifier. Each unit features the world’s best components and materials, hand-selected by Lars himself, alongside our own custom parts.







LARS is a fully balanced power amplifier that operates in class A with a linear construction throughout and zero negative feedback.

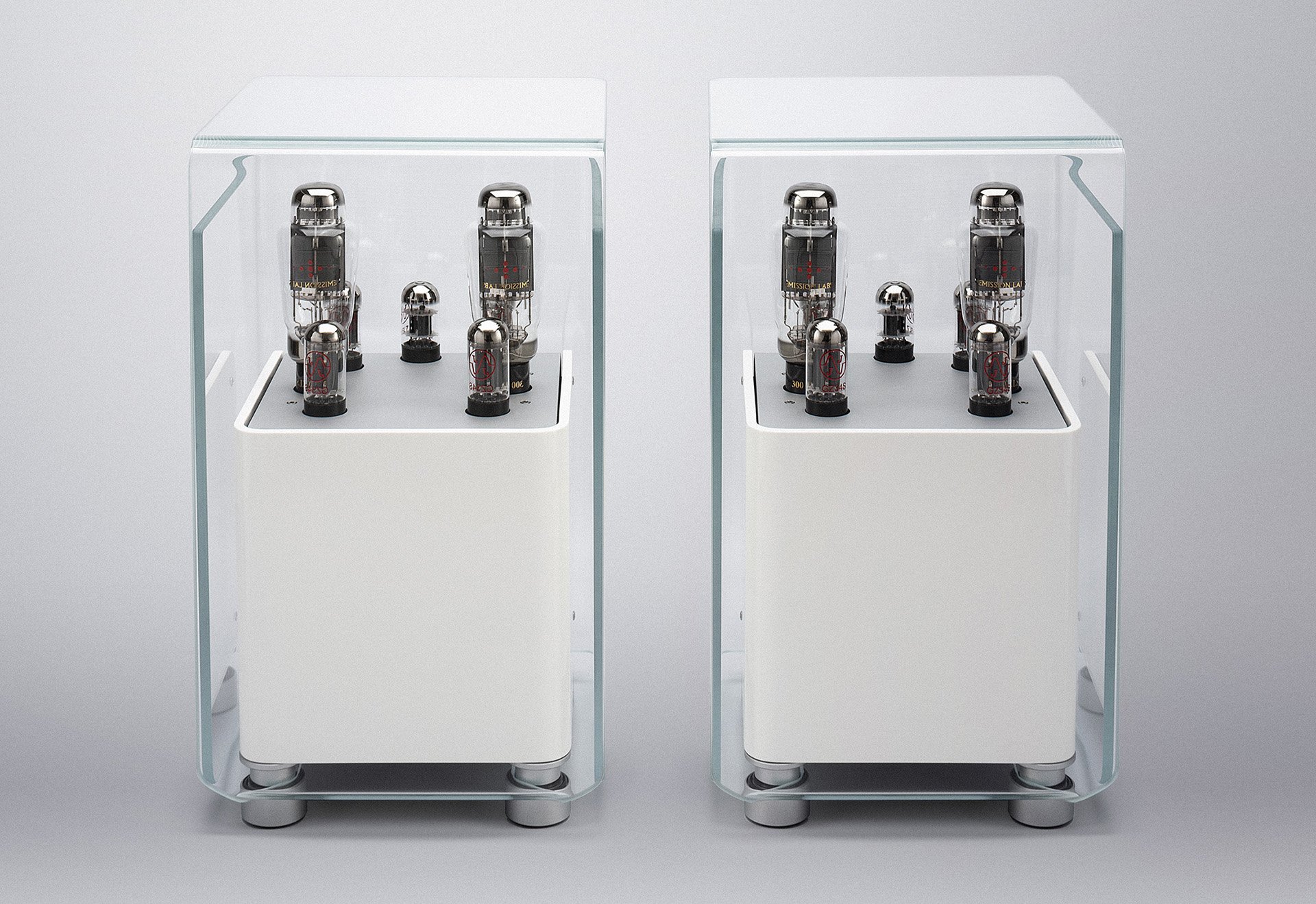

LARS is configured as two expertly crafted monoblock amplifiers. Each amplifier contains best-in-class components and has two inputs, one balanced XLR and one unbalanced RCA connector.











TECHNICAL SPECIFICATIONS


Power output at 1% THD+N, 1kHz:

36W

Amplification:

26dB or 18dB
(-8db switch on the back)

Sensitivity:

400mV for full output power

Input impedance:

40kohm

Output impedance:

4, 8 or 16 ohm

Tubes:

2 x 300B-XLS, 2 x 6V6GT,
1 x 6188, 2 x GZ34

Frequency response +0dB -1dB:

10Hz – 40 kHz

Mains power:

115V / 230V selectable,
50Hz – 60Hz, 200W

THD (BW 70kHz) 100 Hz to 10 kHz:

32W less than 0,5%

Hum and noise:

70dB below full output voltage

Weight per monoblock:

23kg

Dimensions (W x H x D):

two units both equalling
300 x 500 x 380mm
