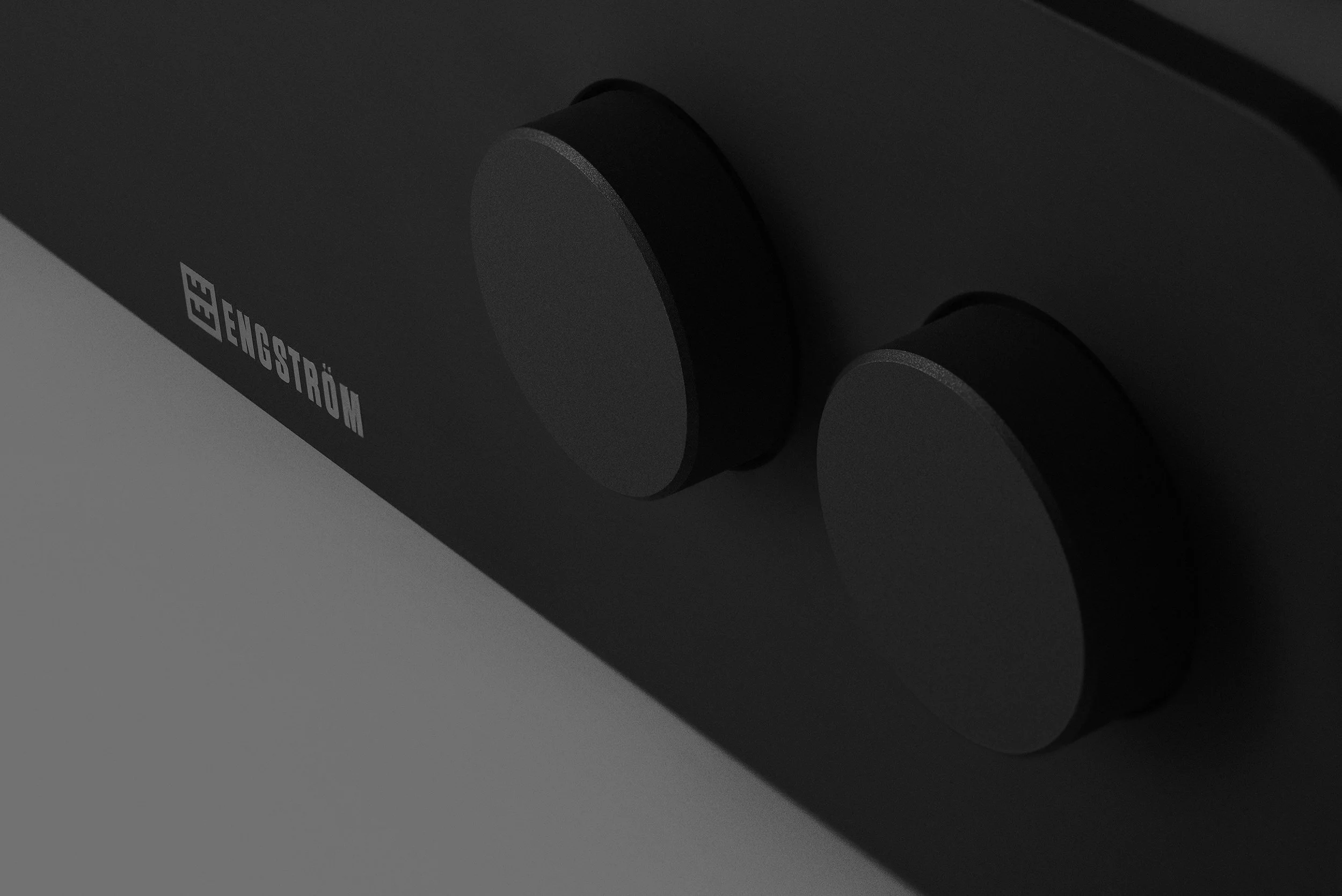

M-Phono
••
As the third chassis complementing the MONICA line-stage, M-Phono is the MM/MC phono-pre-amp. Integrated into the original MONICA pre-amplifier in 2014, it is now a standalone product allowing the phono and line-stage to reach their full potential.
M-PHONO TECH SPECS
••
INPUTS:
MM 10mV load 47kΩ
MC 1mV load 100, 200, 300, 500, 750, 1500
Ω-switch on back
AMPLIFICATION:
MM 40dB
MC 60dB
OUTPUT AT 1kHz
1V THD 0,6%
3V THD 1.5%
OUTPUT IMPEDANCE
at 1kHz 100Ω
at 20Hz 300Ω
DIMENSIONS (WxDxH):
480 x 300 x 150
3V THD 1.5%
OUTPUT IMPEDANCE
at 1kHz 100Ω
at 20Hz 300Ω
DIMENSIONS (WxDxH):
480 x 300 x 150
HUM:
50Hz -60dBV
NOISE:
>200Hz -100dBV
TUBES:
2 x E88CC
2 x E182CC
MAINS POWER:
115V / 230V
50Hz – 60Hz, 34VA
MAINS FUSE:
230V 1,6 A slow
115V 3,15A slow
WEIGHT:
15kg
